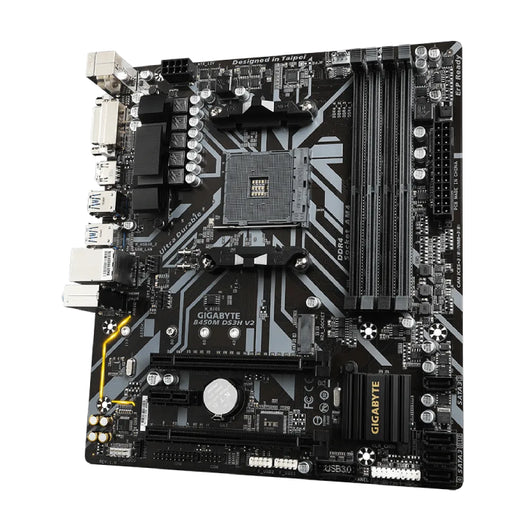

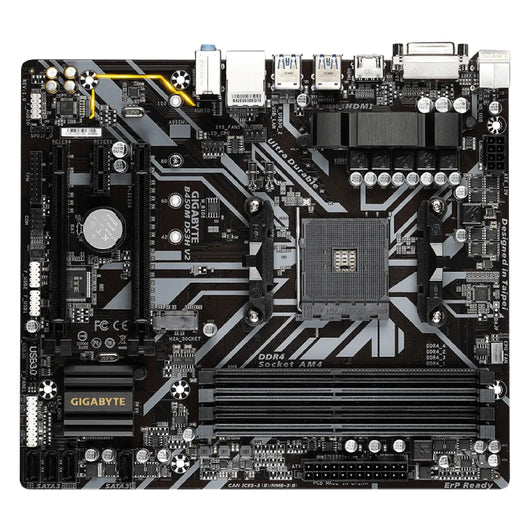

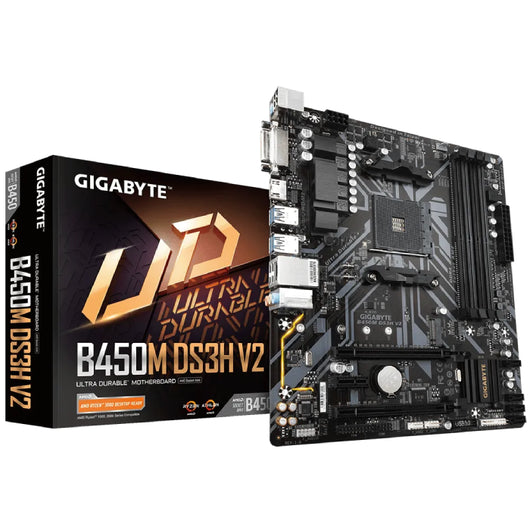

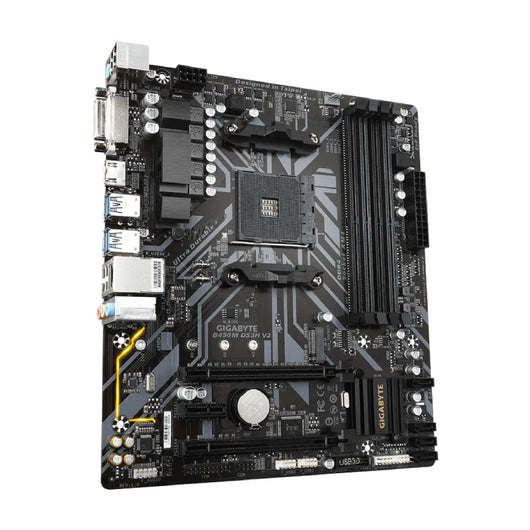

اللوحة الأم-GIGABYTE-B450M-DS3H-V2

CPU

AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen

Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™

Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with

Radeon™ Vega Graphics Processors

Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of

system memory

Dual channel memory architecture

Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz

memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-

ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)

* Support for HDMI 2.0 version and HDCP 2.2.(Note)

Maximum shared memory of 16 GB

Audio

Realtek® Audio codec

High Definition Audio

2/4/5.1/7.1-channel

To configure 7.1-channel audio, you need to open the audio software and select

Device advanced settings > Playback Device to change the default setting first.

Please visit GIGABYTE's website for details on configuring the audio software.

Support for S/PDIF Out

LAN

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe

x4/x2* SSD support)

* Actual support may vary by CPU.

* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-

series or Athlon™ X4 APU.

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

USB

Chipset:

2 x USB 3.1 Gen 1 ports available through the internal USB header

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal

USB headers)

CPU:

4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x CPU cooler LED strip/RGB LED strip header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module

only)

1 x serial port header

1 x Clear CMOS jumper

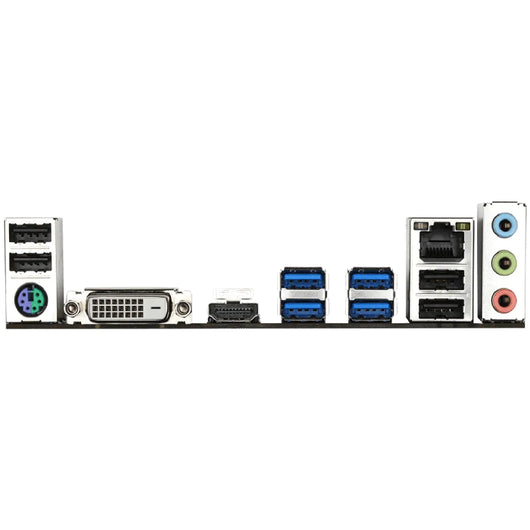

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard

specifications.

@BIOS

EasyTune

Fast Boot

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor
