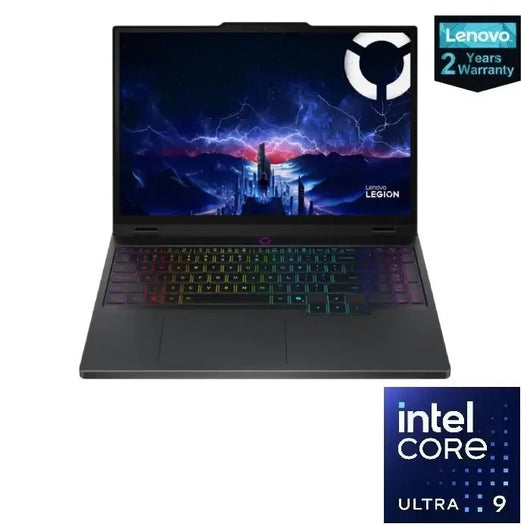

LAPTOP-LENOVO-LEGION 5-15IAX10-Intel® Core Ultra 9 275HX-32G( 2x 16GB SO-DIMM )-1TB SSD-NVIDIA® GeForce RTX™ 5070 8GB GDDR7-15.1 INCH WQXGA (2560x1600) OLED 1000nits -100% DCI-P3-165Hz-24-Zone RGB Backlit Arabic keyboard-Eclipse Black-2YRS /83F0004AED
Lenovo Legion 5 15IAX10 Gaming Laptop, Intel Core Ultra 9 275HX, 32GB RAM - Technical Specifications
| Brand | Lenovo |
| Model Name | Legion 5 15IAX10 |
| Model Number | 83F0004AED |
| Color | Eclipse Black |
| AI PC Category | AI-Powered Gaming PC |
| Processor |
Intel® Core Ultra 9 275HX, 24Cores (8P + 16E) / 24Threads, Max Turbo up to 5.4GHz, 36MB |
| Memory | 2x 16GB SO-DIMM DDR5-5600 RAM |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable Max Memory: Up to 32GB DDR5-5600 offering |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Card Reader | None |
| Optical DVD | None |
| Graphic Card |
NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS |
| Display Resolution |
WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600 |
| Display Size | 15.1-Inch |
| Touchscreen | None |
| I/O Ports |
2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers / Microphone |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio 2x, Array Microphones |
| Camera | 5.0MP with E-shutter |
| Network/wireless |
Wi-Fi® 7, 802.11be 2x2 + Bluetooth 5.4 Ethernet: 100/1000M (RJ-45) |
| Keyboard & Touchpad |
24-Zone RGB Backlit, Arabic Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Operating System | FREE DOS |
| Battery | Integrated 80Wh |
| Power | 245W Slim Tip (3-pin) |
| Dimensions |
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches) |
| Security |
Firmware TPM 2.0 Enabled E-shutter |
| Weight | Starting at 1.9 kg (4.19 lbs) |
| Product warranty | 2 Years |

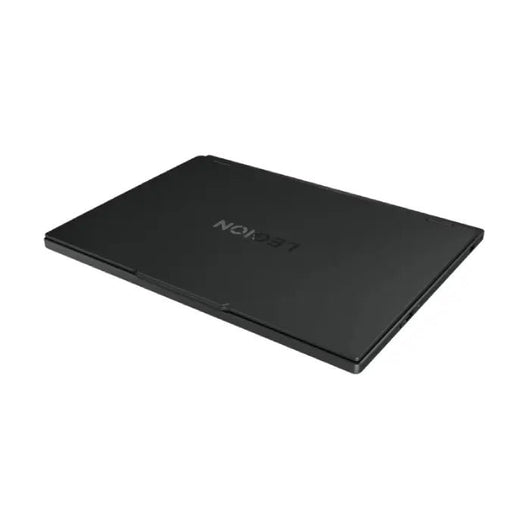

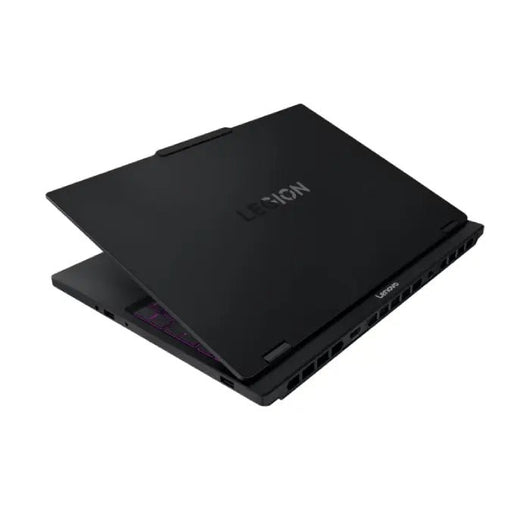

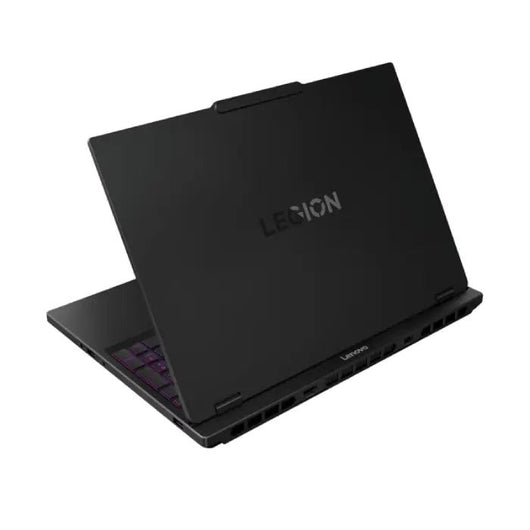

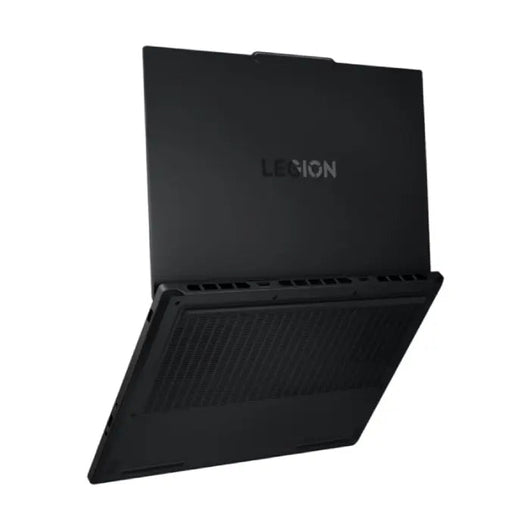

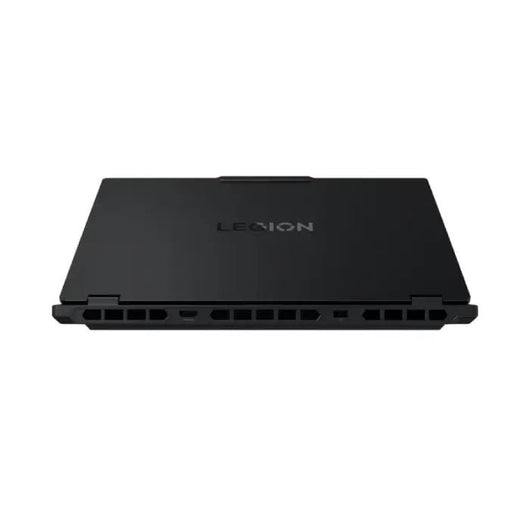

The Lenovo Legion 5 15IAX10 is an AI-Powered Gaming PC engineered for the uncompromising gamer and creative professional. Combining the revolutionary power of the Intel Core Ultra 9 processor with the bleeding-edge performance of the NVIDIA GeForce RTX 50-Series graphics, this laptop is built to dominate in all the latest AAA titles while offering a professional, understated aesthetic in its slim, Eclipse Black chassis.
It is a machine that perfectly blends elite performance with exceptional visual fidelity, making it an ideal choice for a powerful, portable desktop replacement.
The combination of the Intel Core Ultra 9 275HX processor and the NVIDIA RTX 5070 GPU delivers a formidable mobile gaming experience. The system is enhanced by the LA3 AI Chip (Lenovo AI Engine+), which intelligently optimizes system performance, cooling, and power management to maximize frame rates and efficiency based on the application in use. This makes the Legion 5 15IAX10 a true AI-Powered Gaming PC.
Immersive Display Technology

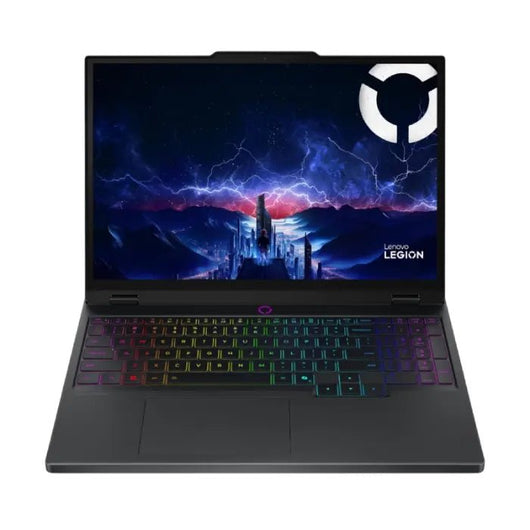

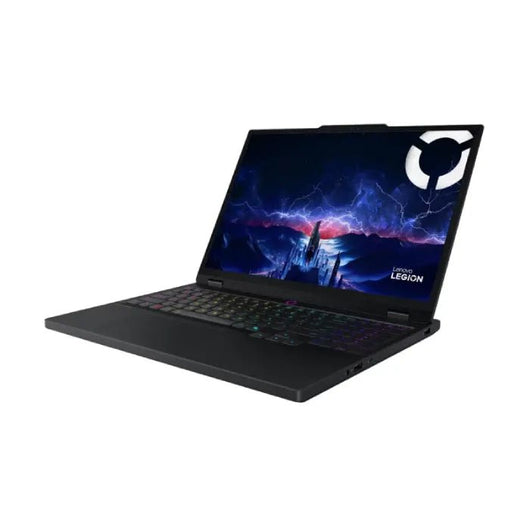

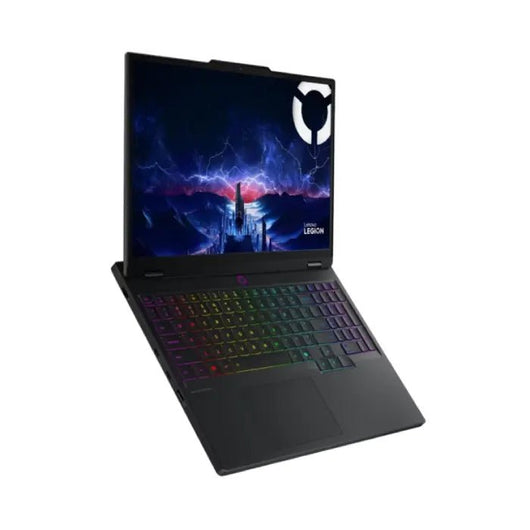

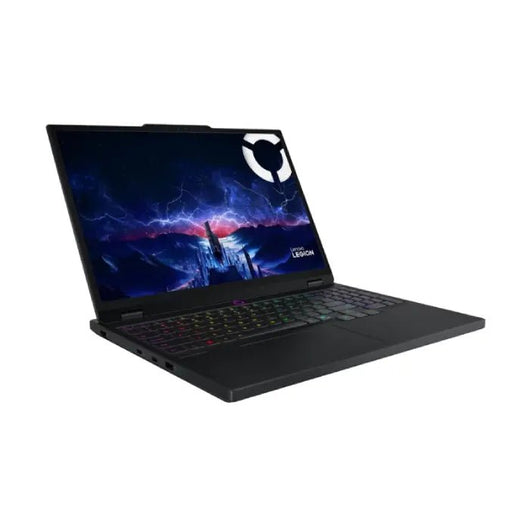

The 15.1-inch WQXGA OLED panel is arguably the star of the show. With a response time of less than 1ms and VESA DisplayHDR™ True Black 600 certification, the screen produces incredible contrast and visual punch. Whether you're engaging in competitive esports or settling in for an HDR movie, the 16:10 aspect ratio also provides more vertical screen real estate, which is excellent for productivity and web browsing.
Connectivity and Battery
The laptop is equipped with a high-capacity 80Wh battery and supports Super Rapid Charge, allowing you to power up quickly when you need to be mobile. A complete array of I/O ports ensures you can connect all your peripherals and external displays without a problem, solidifying its role as a portable powerhouse.
